Model 100-28
Oscillator

Watch ramé-hart Videos

Watch Video

PDF Brochure

More Pictures

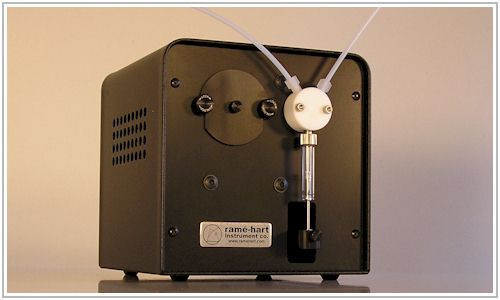

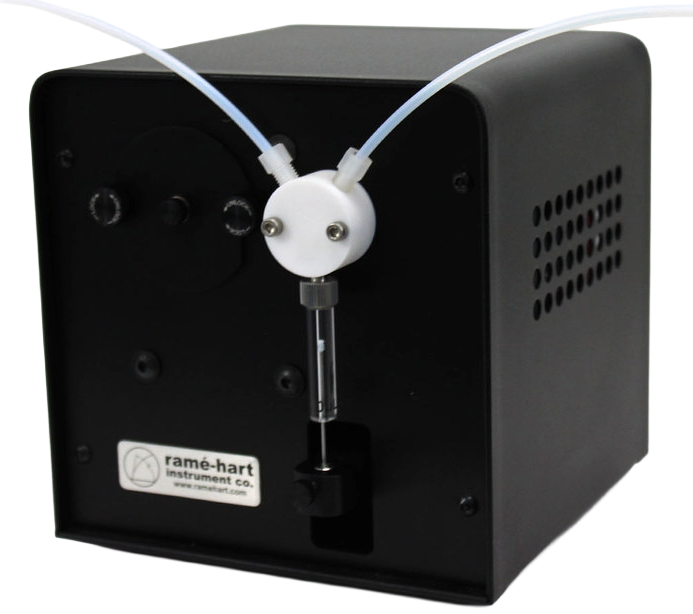

The ramé-hart Oscillator (p/n 100-28) provides precisely controlled periodic oscillatory deformation of sessile and pendant bubbles and drops in order to allow for the measurement of surface dilatational elasticity and viscosity using the axisymmetric drop and bubble shape method. Designed to sit inline between the Automated Dispensing System and the final dispensing tip or needle, the Oscillator is motor-driven and fully software controlled using ramé-hart DROPimage v2.4 or higher software. The Oscillator requires an Automated Dispensing System and current-generation Model 250, 290, 500, or 590 or a legacy system that has been sufficiently upgraded. DROPimage Advanced includes a methods editor which incorporates an array of parameters for controlling the frequency, acceleration, timing and steps of the oscillation commands. This product includes (1) one year parts and labor warranty.

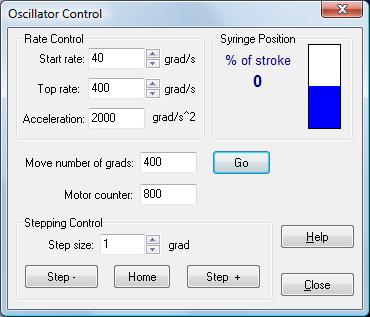

The Oscillator Control dialog box, shown above, offers complete flexibility in controlling the device. The Oscillator can also be integrated into a methods-based experiment using the Methods Editor. Oscillation speeds can be precisely controlled between 0 and 25Hz.

The video above shows how DROPimage Advanced can be setup to  automatically measure surface dilatational elasticity and viscosity. This simple experiment uses only two frequencies. At the end of the experiment the oscillation results appear. Much more involved experiments with more frequency and longer cycles are possible.

What’s in the box
Oscillator, serial cable, power cable, interconnect tubing, one 50uL syringe (other sizes available), stroke-adjustment tool, and detailed User Guide.

For more information or a quotation, please contact us
or call 973-448-0305
